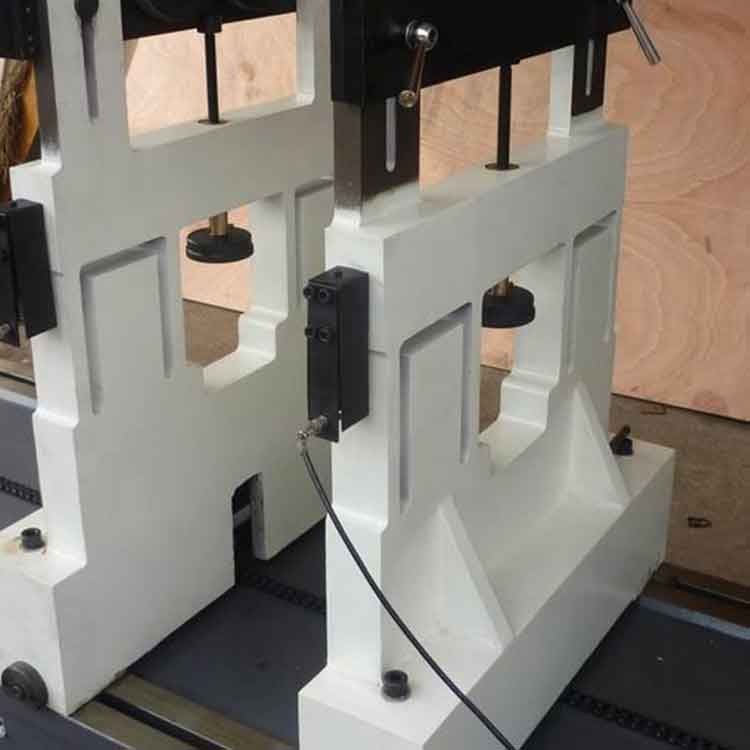

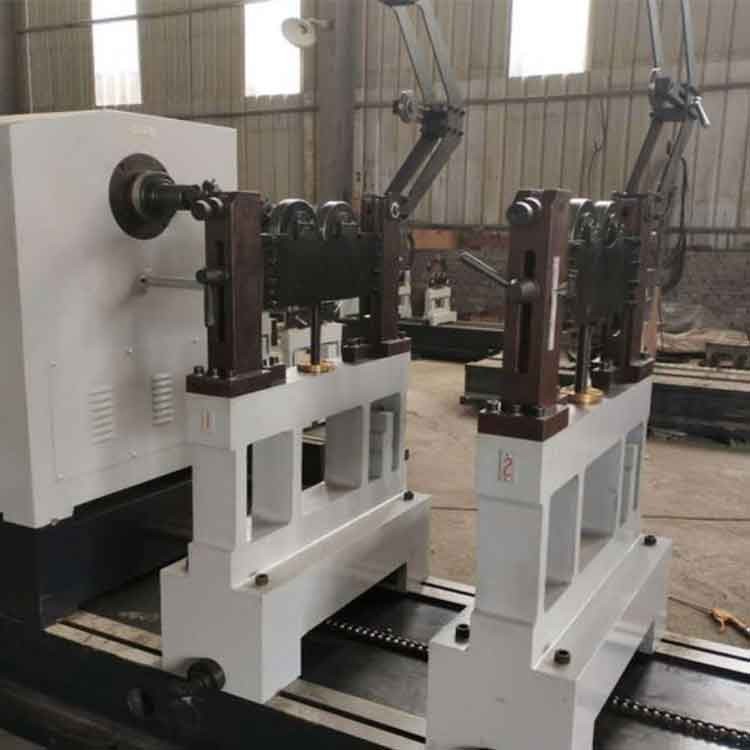

High precision YYH-1600A crankshaft dynamic balancing machine
High precision YYH-1600A crankshaft dynamic balancing machine
Series product
| Model | Drive way | Workpiece mass range (kg) | Workpiece diameter (mm) |
| YYH-160A | Ring | 2-160 | Φ950 |
| Universal joint | 5-160 | ||
| YYH-300A | Ring | 5-300 | Φ1200 |
| Universal joint | 10-300 | ||
| YYH-500A | Ring | 10-500 | Φ1500 |
| Universal joint | 20-500 | ||
| YYH-1000A | Ring | 10-1000 | Φ1500 |
| Universal joint | 20-1000 | ||
| YYH-1600A | Ring | 30-1600 | Φ1800 |
| Universal joint | |||
| Model | Drive way | Diameter range of loop belt dragging (mm) | Minimum achievable residual imbalance(g.mm/kg) |
| YYH-160A | Ring | Φ30-300 | ≤0.5 |
| Universal joint | / | ≤1 | |
| YYH-300A | Ring | Φ40-450 | ≤0.5 |
| Universal joint | / | ≤1 | |
| YYH-500A | Ring | Φ40-500 | ≤0.5 |
| Universal joint | / | ≤1 | |
| YYH-1000A | Ring | Φ40-650 | ≤0.5 |
| Universal joint | / | ≤1 | |
| YYH-1600A | Ring | Φ40-800 | ≤0.5 |
| Universal joint | / | ≤1 |
Product application
Widely used fan, blower, etc, can be in the single side, double side and multiple correction plane balance measurement. Have high efficiency, precision accurate, show intuitional, reliable quality, easy maintenance, the characteristics of software with ordinary workpiece and standard rotor two calibration function, overcoming the other hard supporting balance machine measurement system to users to calibration equipment defects, and the coupling compensation function and so on many kinds of measuring method and function to choose, can realize the input parameters, preview, the experiment, the results storage, print, operating all adopt the localization menu structure, the man- machine dialogue, automatic hints.
Product feature
Operation interface
Product advantage
Packaging & Shipping
