RYQ-10A vertical dynamic dynamic balancer for small electric armature

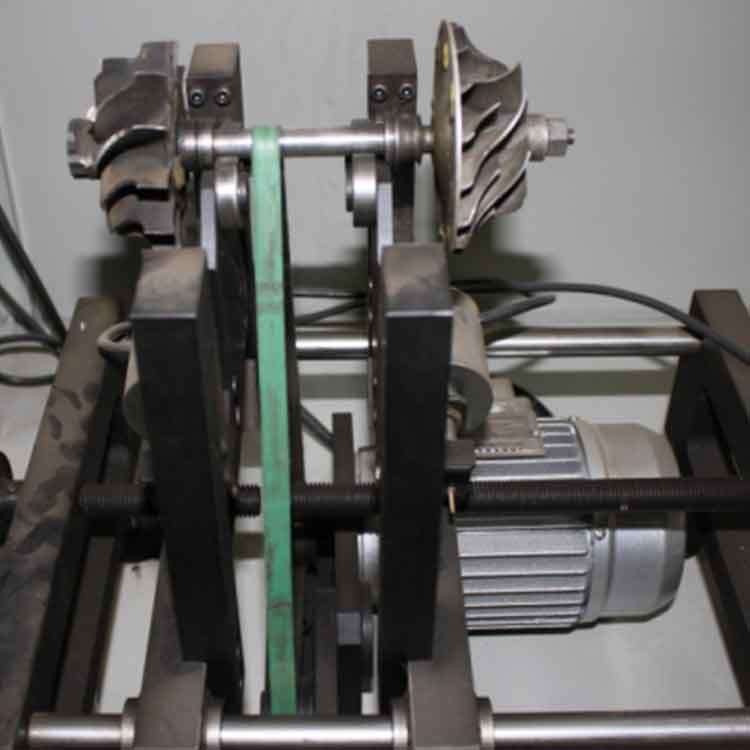

RYQ-3A automobile turbocharger dynamic balance machine for sale
Its specialty that there are two bearing pedestals selection and mostly satisfied variety rotors , etc .. Driven by belt,it is simple to load and unload,quick to start and with high precision and low failure rate.
Series product
Technical data at a glance | RYQ-3A | RYQ-10A | RYQ-16A |
Mass scope of workpiece kg | 0.1-3 | 1-10 | 0.3-16 |
Biggest diameter workpiece mm | 350 | 500 | 500 |
Two span of supports mm | 30-450 | 30-600 | 50-550 |
With a diameter circle in drag (mm) | ≤150 | 5-60 | 15-200 |
Trunnion support mm | 4-17 | ≤150 | 5-36 |
Min achievable residual unbalance amount | ≤0.5gmm/kg | ≤0.5gmm/kg | ≤0.5gmm/kg |
Unbalance reduction ratio% | ≥90% | ≥90% | ≥90% |
Motor power | 0.09kw | 0.18kw | 0.18kw |
mode of speed regulation | Micro-motor | PREVIOUS：ISO9001 certified YLD-42A universal dynamic balance machine NEXT：Hot sale YYW-30000A extra large size Tractor turbocharger dynamic balancing INQUIRYRELATED PRODUCTSCATEGORIESLATEST NEWSCONTACT USContact: Mr. Cui Jack Phone: +86- 13608932538 E-mail: phoenix@jnbdh.com.cn Whatsapp:8613608932538 Add: No. 8697, Jingshi West Road, Jinan, Shandong, China
|
