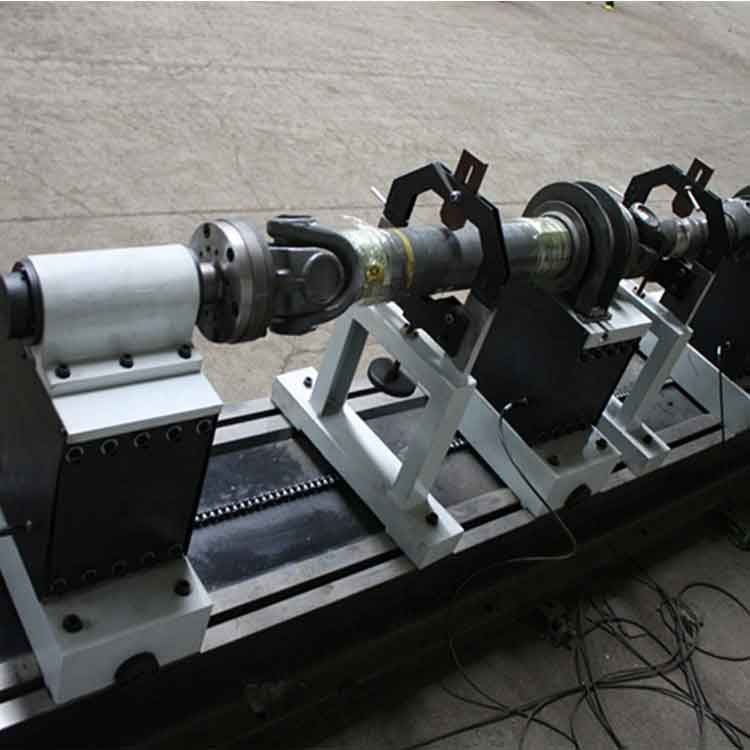

YDW-200A drive shaft rotor dynamic balancing testing machine for sale

Heavy duty YDW-100A motor rotor dynamic balancer manufacturer

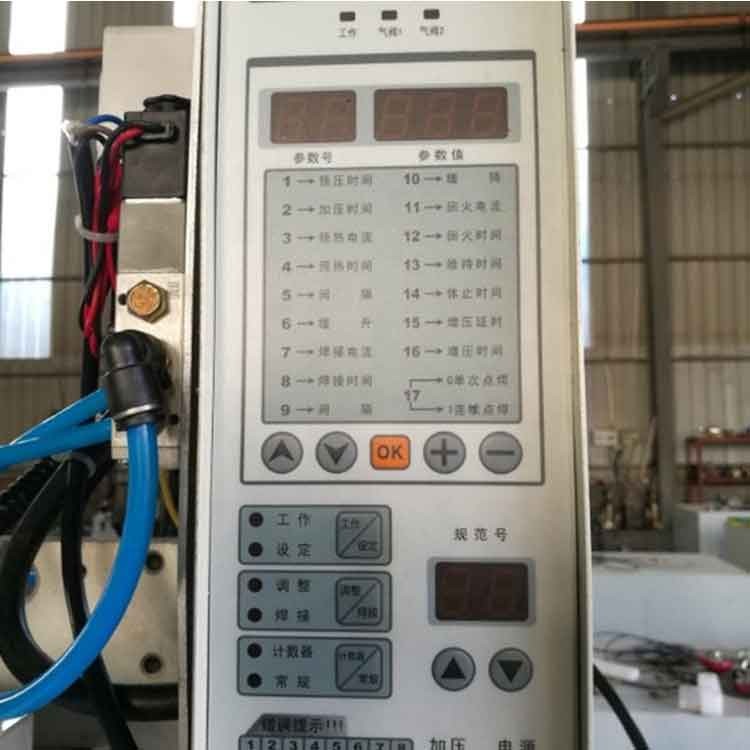

The measuring unit employs electrical measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily.

Heavy duty YDW-100A motor rotor dynamic balancer manufacturer

Series product

Heavy duty YDW-100A motor rotor dynamic balancer manufacturer

Model	YDB-100A	YDB-200A	YDW-100A	YDW-200A
Maximum workpiece quality(kg)	100	200	100	200
Workpiece length (mm)	2200 Uniaxial correction	2200 Uniaxial correction	2100 Uniaxial correction	2400 Uniaxial correction
Balance speed (r/min)	500-1500 Stepless speed regulation	500-1500 Stepless speed regulation	500-1500 Stepless speed regulation	500-1500 Stepless speed regulation
Minimum achievable residual imbalance(g.mm/kg)	≤8	≤20	≤8	≤20
Imbalance reduction rate(%)	≥85	≥85	≥85	≥85
Motor power (kw)	1.5	1.5	2.2	1.5
Speed mode	Frequency	Frequency	Frequency	Frequency

Model	YDW-200AⅡ	YDW-300AⅢ	YDW-2000A
Maximum workpiece quality(kg)	200	300	2000
Workpiece length (mm)	3100 Two-axis joint school	3100 Two-axis joint school	4000 Uniaxial correction
Balance speed (r/min)	500-1500 Stepless speed regulation	500-1500 Stepless speed regulation	110-1500 Stepless speed regulation
Minimum achievable residual imbalance(g.mm/kg)	≤20	≤20	≤20
Imbalance reduction rate(%)	≥85	≥85	≥85
Motor power (kw)	2.2	3	11
Speed mode	Frequency	Frequency	Frequency

Product application

Heavy duty YDW-100A motor rotor dynamic balancer manufacturer

This balancing machine is designed for balancing all kinds of turbocharger rotors and other rotors such as kinds of good-sized and medium-sized turbocharger rotor,turbocharger impellers, turbocharger turbines,turbocharger compressors,motors,textile machinery,crank,shaft,roller,fans,shaft according to demanding of our customers.
